Dw-45L938/60L938/86L938
JIESHENG
| Quantity: | |
|---|---|

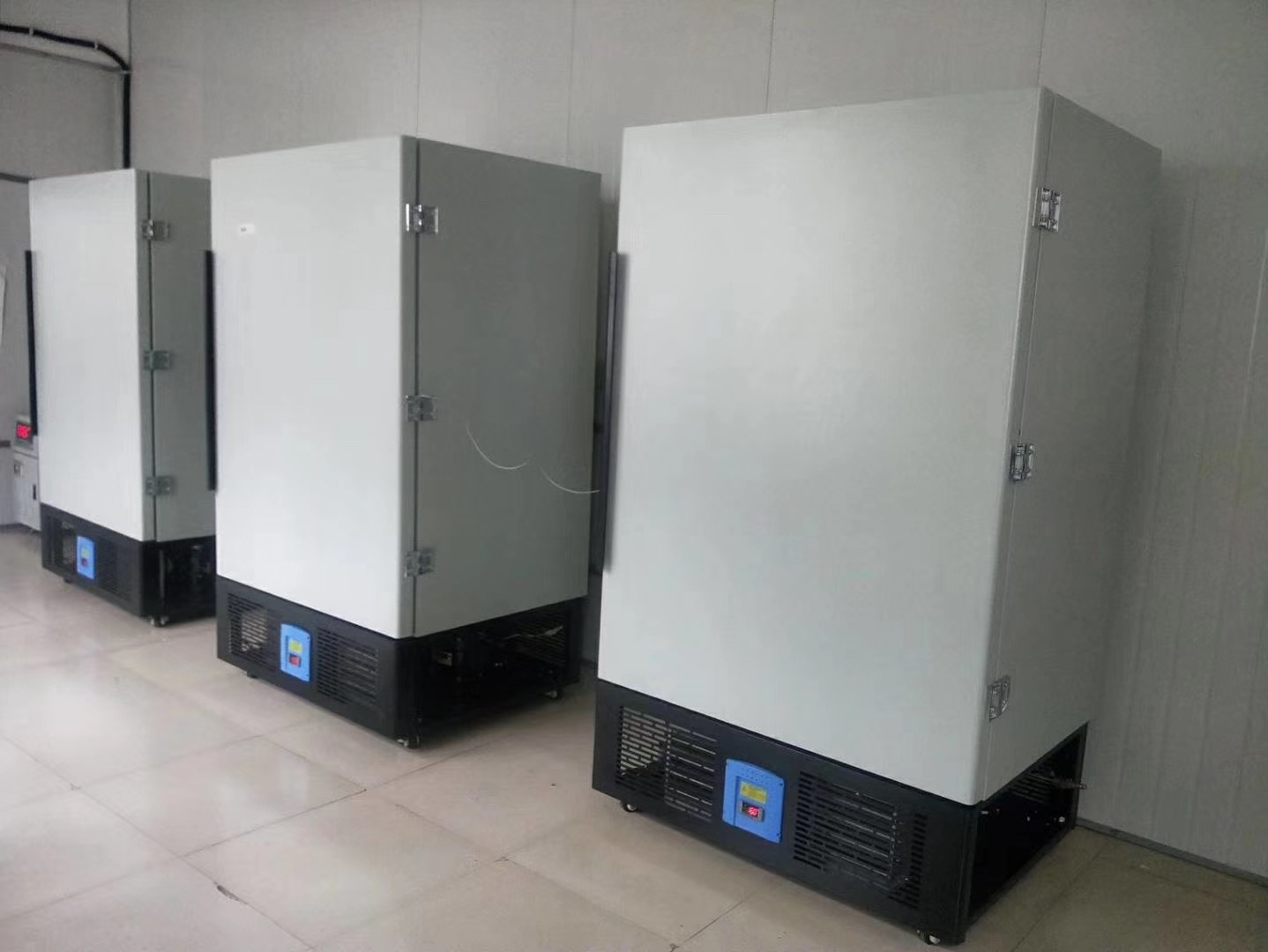

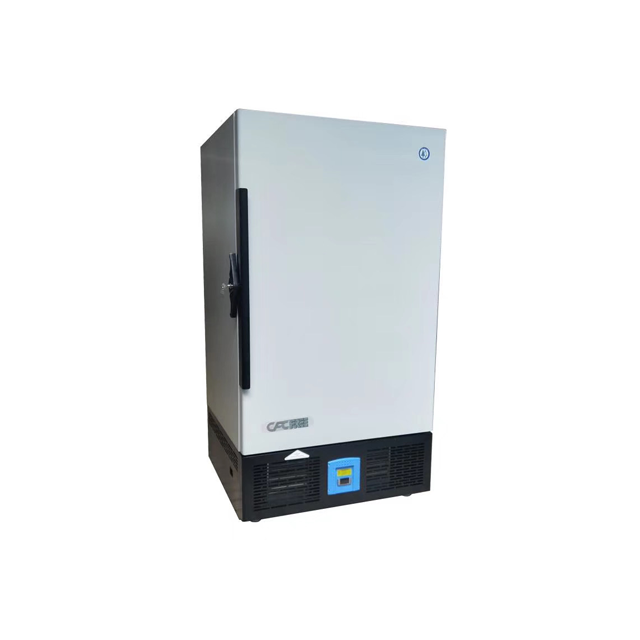

Ultra-Low Temperature Vertical Freezer Medical Deep Freezer DW-45L938/60L938/86L938
Technical Advantages:

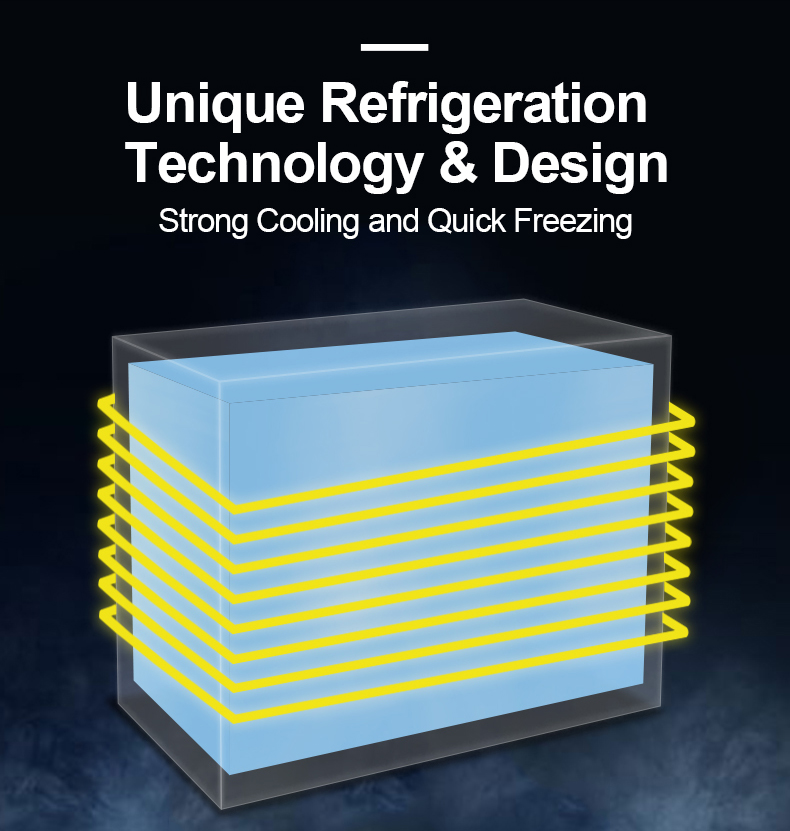

1. Unique single-stage refrigeration technology & design, strong cooling and quick freezing;
2. With CFC free mixed refrigerants and foaming agent, high efficiency and energy saving;
Main Components:
1. SECOP & Embraco compressor, strong cooling, reliable and long working life;
2. Italian Dixell temperature controller, high accuracy and with Hi/Low temperature & Sensor fault alarm;
3. EBM Fan motor is reliable and long working life;
4. SUS 304 stainless steel liner/shelf/inner door, healthy, durable and easy to clean;
5. Thicker insulation (130mm) and double door gaskets design proving enough energy saving;

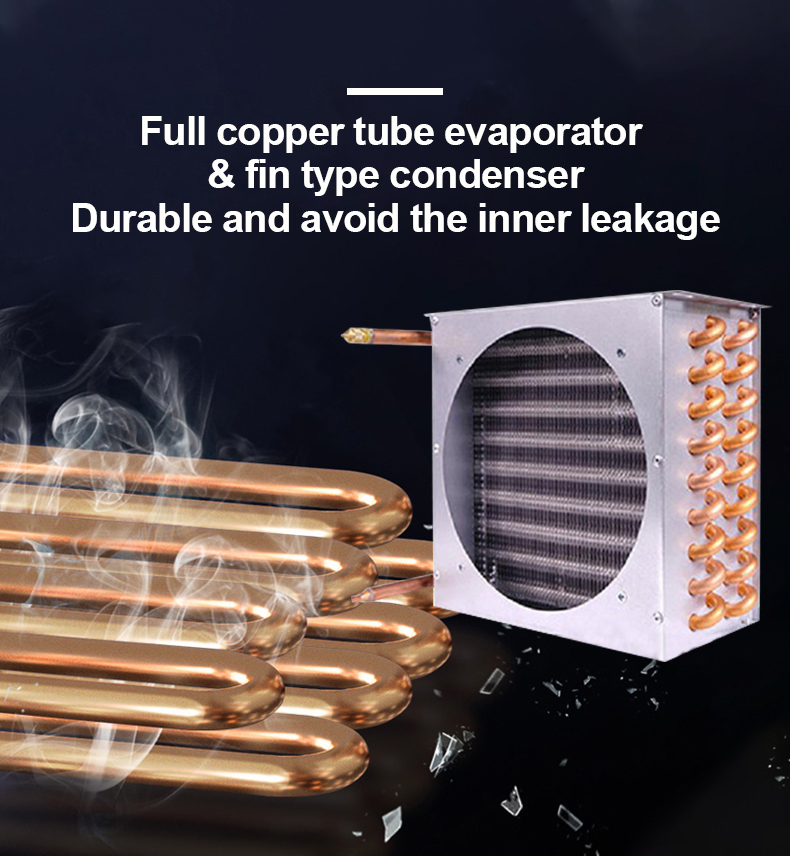

6. Full copper tube evaporator is durable and avoiding the inner leakage.
7.Temperature Recorder & Power failure Alarm are optional;
-45 Degree Ultra Low Temperature Freezer
| Model | DW-45L400 | DW-45L550 | DW-45L638 | DW-45L750 | DW-45L938 |
| Capacity | 400 L | 550 L | 638 L | 750 L | 938 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 130mm | 130mm | 130mm | 130mm | 130mm |
| Temperature Range | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ |
| Electronic controller with temperature display | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | OPtional | OPtional |
| Rated input power | 350W | 380W | 450W | 480W | 520W |
| Power consumption | 3.8kwh/24h | 4.3kwh/24h | 4.8kwh/24h | 5.5kwh/24h | 6.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor | Single | Double | Double | Double | Double |
| Net /Gross weight | 180 Kg/215KG | 195 Kg/235KG | 215 Kg/250KG | 280 Kg/330KG | 320 Kg/380KG |
| Inner Dimension (mm)(W*D*H) | 500x600x1300 | 600x700x1300 | 700x700x1300 | 890x620x1300 | 1000x700x1300 |
| External dimension (mm)(W*D*H) | 760*865*1975 | 860*965*1975 | 960*965*1975 | 1150*885*1975 | 1260*965*1975 |
| Packing dimension(mm) | 880*980*2100 | 980*1080*2100 | 1080*1090*2100 | 1260*1045*2100 | 1380*1085*2100 |
-60 Degree Ultra Low Temperature Freezer | |||||
| Model | DW-60L400 | DW-60L550 | DW-60L638 | DW-60L750 | DW-60L938 |
| Capacity | 400 L | 550 L | 638 L | 750 L | 938 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 130mm | 130mm | 130mm | 130mm | 130mm |
| Temperature Range | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ |
| Electronic controller with temperature display | DIXELL | DIXELL | DIXELL | DIXELL | DIXELL |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | OPtional | OPtional |
| Rated input power | 550W | 580W | 620W | 650W | 1200W |
| Power consumption | 6.2kwh/24h | 6.5kwh/24h | 7.2kwh/24h | 7.5kwh/24h | 12.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor(Danfoss or Embraco) | Single | Double | Double | Double | Double |
| Net /Gross weight | 180 Kg/215KG | 195 Kg/235KG | 215 Kg/250KG | 280 Kg/330KG | 320 Kg/380KG |
| Inner Dimension (mm)(W*D*H) | 500x600x1300 | 600x700x1300 | 700x700x1300 | 890x620x1300 | 1000x700x1300 |
| External dimension (mm)(W*D*H) | 760*865*1975 | 860*965*1975 | 960*965*1975 | 1150*885*1975 | 1260*965*1975 |
| Packing dimension(mm) | 880*980*2100 | 980*1080*2100 | 1080*1090*2100 | 1260*1045*2100 | 1380*1085*2100 |
-86 Degree Ultra Low Temperature Freezer | |||||
| Model | DW-86L400 | DW-86L550 | DW-86L638 | DW-86L750 | DW-86L938 |
| Capacity | 400 L | 550 L | 638 L | 750 L | 938 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 130mm | 130mm | 130mm | 130mm | 130mm |
| Temperature Range | '-40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ |
| Electronic controller with temperature display | DIXELL | DIXELL | DIXELL | DIXELL | DIXELL |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | OPtional | OPtional |
| Rated input power | 800W | 850W | 1000W | 1100W | 1300W |
| Power consumption | 9.2kwh/24h | 9.8kwh/24h | 11.6kwh/24h | 12.5kwh/24h | 14.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor(Danfoss or Embraco) | Single | Double | Double | Double | Double |
| Net /Gross weight | 180 Kg/215KG | 195 Kg/235KG | 215 Kg/250KG | 280 Kg/330KG | 320 Kg/380KG |
| Inner Dimension (mm)(W*D*H) | 500x600x1300 | 600x700x1300 | 700x700x1300 | 890x620x1300 | 1000x700x1300 |
| External dimension (mm)(W*D*H) | 760*865*1975 | 860*965*1975 | 960*965*1975 | 1150*885*1975 | 1260*965*1975 |
| Packing dimension(mm) | 880*980*2100 | 980*1080*2100 | 1080*1090*2100 | 1260*1045*2100 | 1380*1085*2100 |
Ultra-Low Temperature Vertical Freezer Medical Deep Freezer DW-45L938/60L938/86L938
Technical Advantages:
1. Unique single-stage refrigeration technology & design, strong cooling and quick freezing;
2. With CFC free mixed refrigerants and foaming agent, high efficiency and energy saving;
Main Components:
1. SECOP & Embraco compressor, strong cooling, reliable and long working life;
2. Italian Dixell temperature controller, high accuracy and with Hi/Low temperature & Sensor fault alarm;
3. EBM Fan motor is reliable and long working life;
4. SUS 304 stainless steel liner/shelf/inner door, healthy, durable and easy to clean;
5. Thicker insulation (130mm) and double door gaskets design proving enough energy saving;
6. Full copper tube evaporator is durable and avoiding the inner leakage.
7.Temperature Recorder & Power failure Alarm are optional;
-45 Degree Ultra Low Temperature Freezer
| Model | DW-45L400 | DW-45L550 | DW-45L638 | DW-45L750 | DW-45L938 |
| Capacity | 400 L | 550 L | 638 L | 750 L | 938 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 130mm | 130mm | 130mm | 130mm | 130mm |
| Temperature Range | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ |
| Electronic controller with temperature display | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | OPtional | OPtional |
| Rated input power | 350W | 380W | 450W | 480W | 520W |
| Power consumption | 3.8kwh/24h | 4.3kwh/24h | 4.8kwh/24h | 5.5kwh/24h | 6.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor | Single | Double | Double | Double | Double |
| Net /Gross weight | 180 Kg/215KG | 195 Kg/235KG | 215 Kg/250KG | 280 Kg/330KG | 320 Kg/380KG |
| Inner Dimension (mm)(W*D*H) | 500x600x1300 | 600x700x1300 | 700x700x1300 | 890x620x1300 | 1000x700x1300 |
| External dimension (mm)(W*D*H) | 760*865*1975 | 860*965*1975 | 960*965*1975 | 1150*885*1975 | 1260*965*1975 |
| Packing dimension(mm) | 880*980*2100 | 980*1080*2100 | 1080*1090*2100 | 1260*1045*2100 | 1380*1085*2100 |
-60 Degree Ultra Low Temperature Freezer | |||||
| Model | DW-60L400 | DW-60L550 | DW-60L638 | DW-60L750 | DW-60L938 |
| Capacity | 400 L | 550 L | 638 L | 750 L | 938 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 130mm | 130mm | 130mm | 130mm | 130mm |
| Temperature Range | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ |
| Electronic controller with temperature display | DIXELL | DIXELL | DIXELL | DIXELL | DIXELL |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | OPtional | OPtional |
| Rated input power | 550W | 580W | 620W | 650W | 1200W |
| Power consumption | 6.2kwh/24h | 6.5kwh/24h | 7.2kwh/24h | 7.5kwh/24h | 12.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor(Danfoss or Embraco) | Single | Double | Double | Double | Double |
| Net /Gross weight | 180 Kg/215KG | 195 Kg/235KG | 215 Kg/250KG | 280 Kg/330KG | 320 Kg/380KG |
| Inner Dimension (mm)(W*D*H) | 500x600x1300 | 600x700x1300 | 700x700x1300 | 890x620x1300 | 1000x700x1300 |
| External dimension (mm)(W*D*H) | 760*865*1975 | 860*965*1975 | 960*965*1975 | 1150*885*1975 | 1260*965*1975 |
| Packing dimension(mm) | 880*980*2100 | 980*1080*2100 | 1080*1090*2100 | 1260*1045*2100 | 1380*1085*2100 |
-86 Degree Ultra Low Temperature Freezer | |||||
| Model | DW-86L400 | DW-86L550 | DW-86L638 | DW-86L750 | DW-86L938 |
| Capacity | 400 L | 550 L | 638 L | 750 L | 938 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 130mm | 130mm | 130mm | 130mm | 130mm |
| Temperature Range | '-40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ |
| Electronic controller with temperature display | DIXELL | DIXELL | DIXELL | DIXELL | DIXELL |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | OPtional | OPtional |
| Rated input power | 800W | 850W | 1000W | 1100W | 1300W |
| Power consumption | 9.2kwh/24h | 9.8kwh/24h | 11.6kwh/24h | 12.5kwh/24h | 14.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor(Danfoss or Embraco) | Single | Double | Double | Double | Double |
| Net /Gross weight | 180 Kg/215KG | 195 Kg/235KG | 215 Kg/250KG | 280 Kg/330KG | 320 Kg/380KG |
| Inner Dimension (mm)(W*D*H) | 500x600x1300 | 600x700x1300 | 700x700x1300 | 890x620x1300 | 1000x700x1300 |
| External dimension (mm)(W*D*H) | 760*865*1975 | 860*965*1975 | 960*965*1975 | 1150*885*1975 | 1260*965*1975 |
| Packing dimension(mm) | 880*980*2100 | 980*1080*2100 | 1080*1090*2100 | 1260*1045*2100 | 1380*1085*2100 |
