Dw-45W208/60W208
JIESHENG
| Quantity: | |
|---|---|
Ultra-Low Temperature Vertical Freezer Medical Deep Freezer DW-45W208/60W208
Technical Advantages:
1. Unique single-stage refrigeration technology & design, strong cooling and quick freezing;
2. With CFC free mixed refrigerants and foaming agent, green, high efficiency and energy saving;

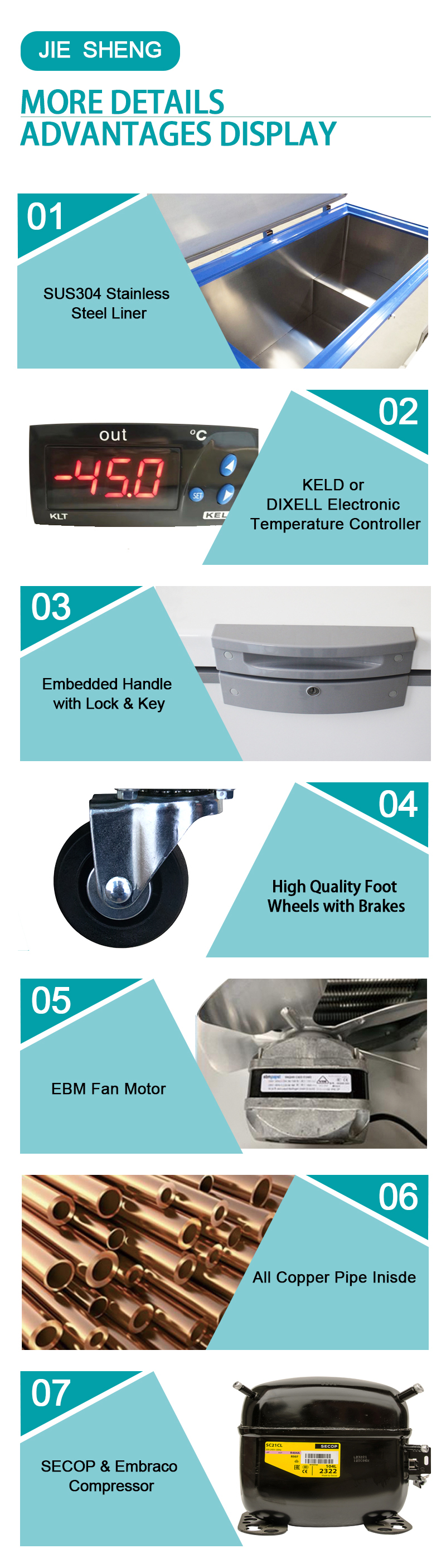

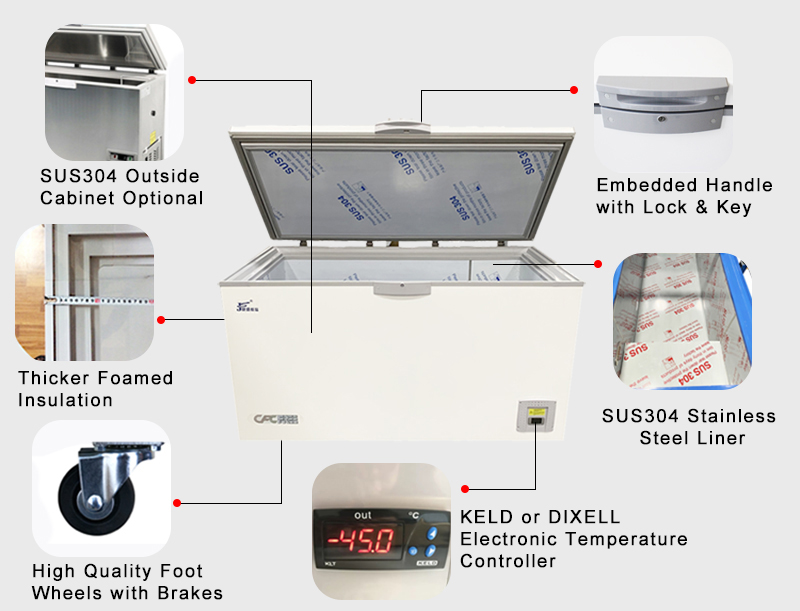

Main Components:
1. SECOP & Embraco compressor, strong cooling, reliable and long working life;
2. Italian Dixell temperature controller, high accuracy and with Hi/Low temperature & Sensor fault alarm;
3. EBM Fan motor is reliable and long working life;
4. SUS 304 stainless steel liner, healthy, durable and easy to clean;
5. Thicker insulation (100mm) and double door gaskets design proving enough energy saving;
6. Full copper tube evaporator is durable and avoiding the inner leakage.
-45 Degree Ultra low Temperature Freezer
| Model | DW-45W28 | DW-45W50 | DW-45W88 | DW-45W108 | DW-45W158 | DW-45W208 |
| Capacity | 28L | 50 L | 88L | 108L | 158L | 208L |
| Type | chest | Chest | Chest | Chest | Chest | Chest |
| Door type | Top solid foamed door | Top solid foamed door | Top open foamed door | Top open foamed door | Top solid foamed door | Top open foamed door |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Climate class | N/ST | N/ST | N/ST | N/ST | N/ST | N/ST |
| Temperature Range | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) |
| Isolation thickness | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Evaporator | Copper | Copper | Copper | Copper | Copper | Copper |
| Temperature controller | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) |
| Alert type | Optional | Optional | Optional | Optional | Optional | Optional |
| Condenser | Fan cooling | Fan cooling | Fan cooling | Fan cooling | Fan cooling | Fan cooling |
| Inside bottom type | Step bottom | Step bottom | Step bottom | Flat bottom | Step bottom | Step bottom |
| Rated input power | 100W | 130W | 170W | 180W | 280W | 320W |
| Power consumption | 1.1kwh/24h | 1.6kwh/24h | 2.0kwh/24h | 2.20kwh/24h | 3.30kwh/24h | 3.50kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Net weight | 35Kg | 45 Kg | 52KG | 58 Kg | 63Kg | 70 Kg |
| Ineer dimension(mm) | 350x270x285 | 462x350x285 | 462x457x395 | 692x462x346 | 692x462x636 | 842x462x636 |
| External dimension (mm) | 565x550x785 | 672x630x785 | 672x735x855 | 900x735x855 | 900x735x855 | 1050x735x855 |
| Packing dimension(mm) | 620x630x870 | 730x710x870 | 730x810x890 | 960x760x890 | 960x760x890 | 1110x760x890 |
-60 Degree Ultra Low Temperature Freezer | ||||||
| Model | DW-60W28 | DW-60W50 | DW-60W88 | DW-60W108 | DW-60W158 | DW-60W208 |
| Capacity | 28 L | 50 L | 88L | 108L | 158L | 208L |
| Type | Chest | Chest | Chest | Chest | Chest | Chest |
| Door type | Top solid foamed door | Top solid foamed door | Top open foamed door | Top open foamed door | Top solid foamed door | Top open foamed door |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Climate class | N/ST | N/ST | N/ST | N/ST | N/ST | N/ST |
| Temperature Range | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) |
| Isolation thickness | 100mm | 100mm | 100mm | 100mm | 100mm | 100mm |
| Evaporator | Copper | Copper | Copper | Copper | Copper | Copper |
| Temperature controller | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) |
| Alert type | Optional | Optional | Optional | Optional | Optional | Optional |
| Condenser | Fan cooling | Fan cooling | Fan cooling | Fan cooling | Fan cooling | Fan cooling |
| Inside bottom type | Step bottom | Step bottom | Step bottom | Flat bottom | Step bottom | Step bottom |
| Rated input power | 150W | 180W | 200W | 300W | 330W | 350W |
| Power consumption | 2.0kwh/24h | 2.5kwh/24h | 2.8kwh/24h | 3.80kwh/24h | 4.30kwh/24h | 4.80kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Net weight | 35 Kg | 45 Kg | 52KG | 58 Kg | 63Kg | 70 Kg |
| Ineer dimension(mm) | 350x270x285 | 462x350x285 | 462x457x395 | 692x462x346 | 692x462x636 | 842x462x636 |
| External dimension (mm) | 565x550x785 | 672x630x785 | 672x735x855 | 900x735x855 | 900x735x855 | 1050x735x855 |
| Packing dimension(mm) | 620x630x870 | 730x710x870 | 730x810x890 | 960x750x890 | 960x750x890 | 1110x750x890 |
