SD-50L
Jiesheng
| Quantity: | |
|---|---|

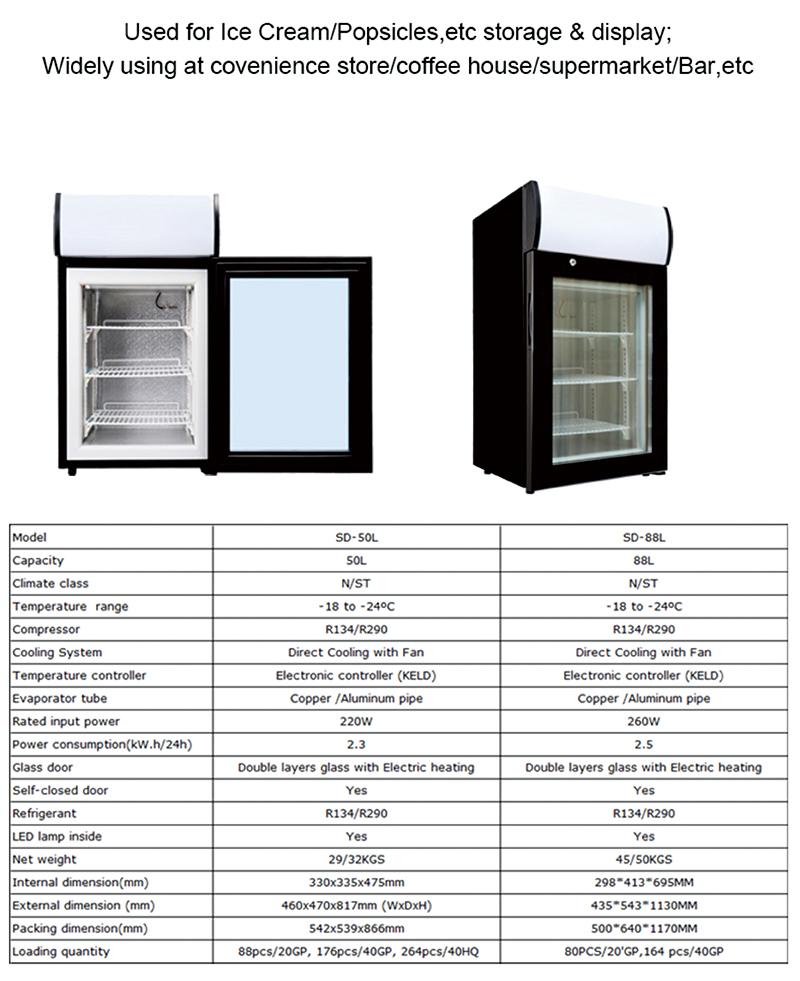

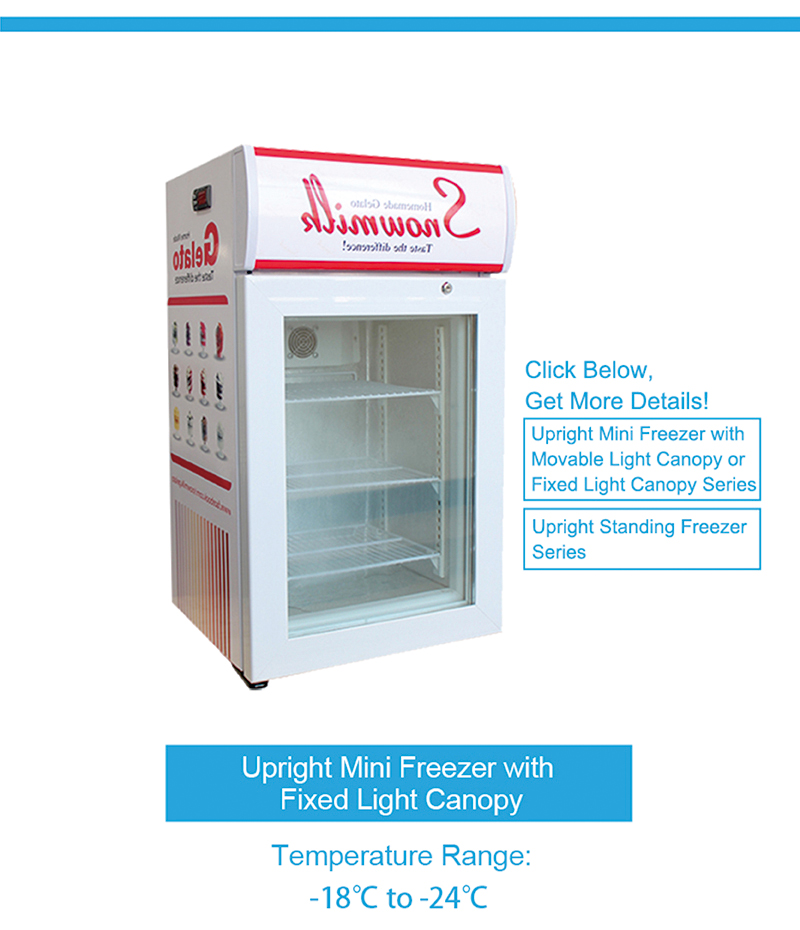

Supermarket Single Glass Door Countertop Display Freezer SD-50L

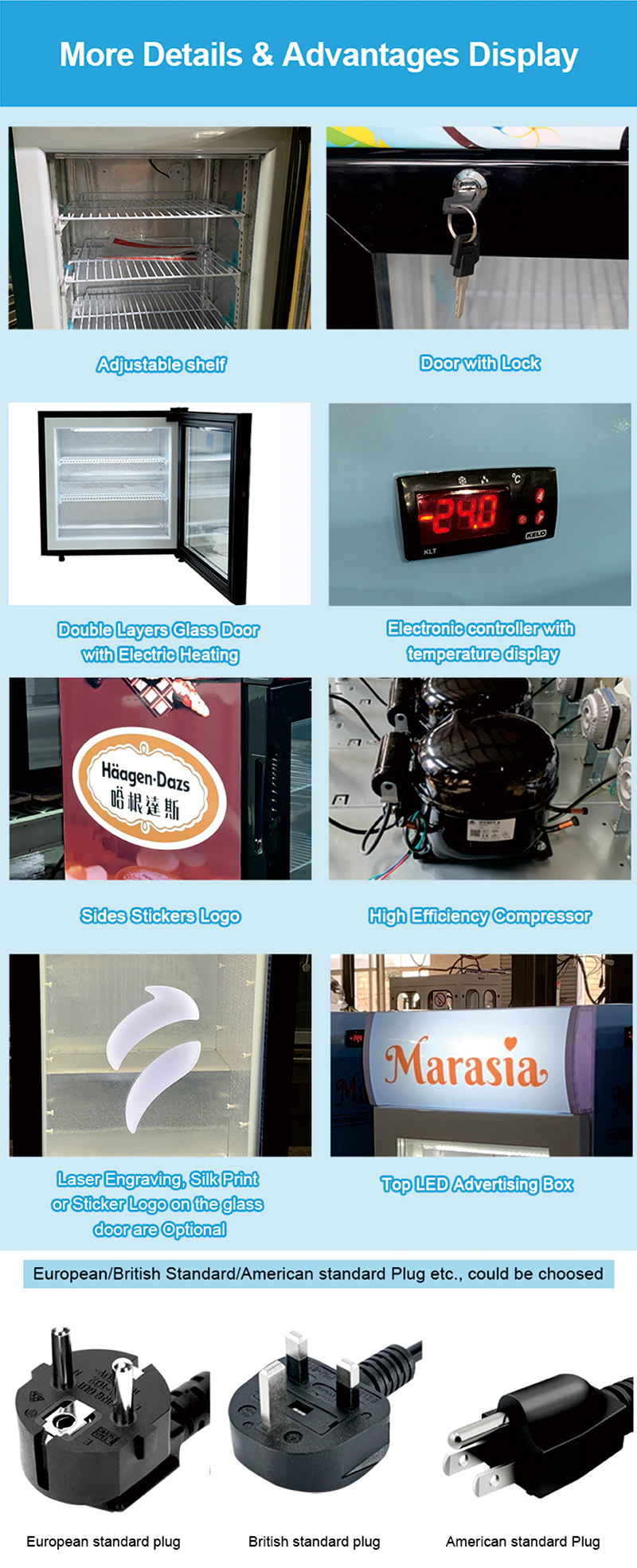

Technical Advantages:
1. Top mounted advertising box with illumination inside cabinet;
2. Electronic temperature controller with temperature display;

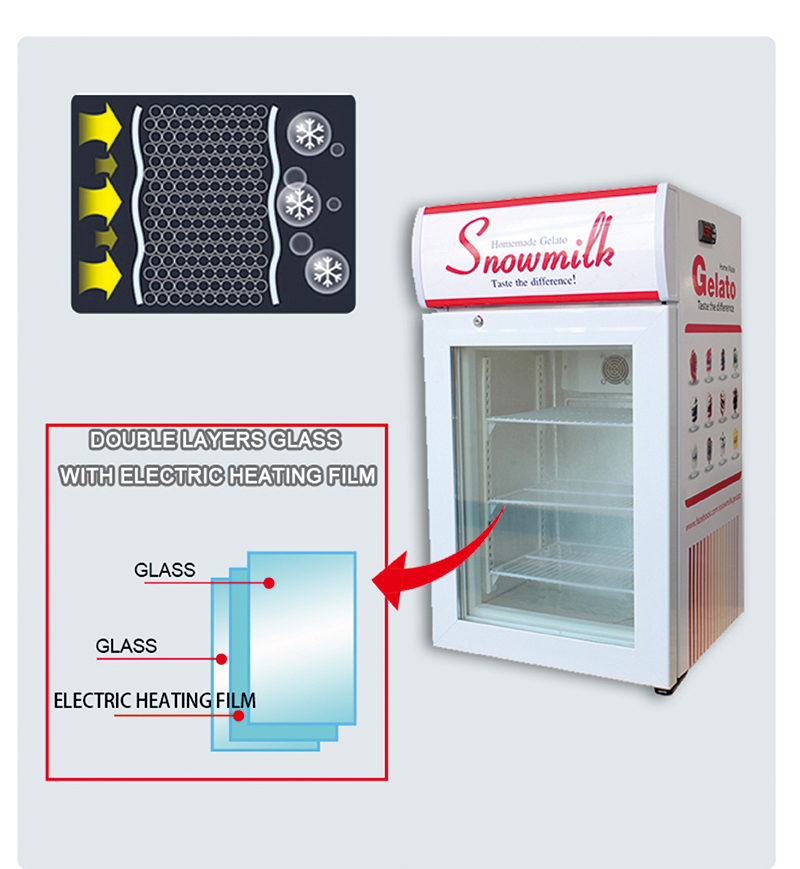

3. Anti-fog glass door with electric-heated glass;
4. Use quiet and high efficiency compressor, low energy consumption;
5. Door with lock and can achieve self-closed;
6. White powder coated liner and adjustable shelf;
7. LED lamp inside;
8. Both sides sticker logo optional.
| Model | SD-50L | SD-88L | LSD-118L | LSD-268 |
| Capacity | 50L | 88L | 118L | 268 L |
| Climate class | N/ST | N/ST | N/ST | N/ST |
| Temperature range | -18 to -24ºC | -18 to -24ºC | -18 to -24ºC | -18 to -24ºC |
| Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz/60 |
| or 110V/60Hz | or 110V/60Hz | or 110V/60Hz | or 110V/60Hz | |
| Compressor | R134/R290 | R134/R290 | R134/R290 | R290 compressor |
| Cooling System | Direct Cooling with Fan | Direct Cooling with Fan | Direct Cooling with Fan | Direct Cooling with Fan |
| Temperature controller | Electronic controller (KELD) | Electronic controller (KELD) | Electronic controller (KELD) | Electronic controller (KELD) |
| Evaporator tube | Copper /Aluminum pipe | Copper /Aluminum pipe | Copper /Aluminum pipe | Copper pipe |
| Rated input power | 220W | 260W | 290 | 400W |
| Power consumption(kW.h/24h) | 2.3 | 2.5 | 3.2 | 4.8 |
| Glass door | Double layers glass with Electric heating | Double layers glass with Electric heating | Double layers glass with Electric heating | Doule layers glass with Electric heating |
| Self-closed door | Yes | Yes | Yes | Yes |
| Refrigerant | R134/R290 | R134/R290 | R134/R290 | R290 |
| LED lamp inside | Yes | Yes | Yes | Yes |
| Net weight | 29/32KGS | 45/50KGS | 62/70KGS | 90/97Kg |
| Internal dimension(mm) | 330x335x475mm | 298*413*695MM | 280*355*1285mm | 465x460x1225mm |
| External dimension (mm) | 460x470x817mm (WxDxH) | 435*543*1130MM | 400*465*1880mm | 590×595x1970mm |
| Packing dimension(mm) | 542x539x866mm | 500*640*1170MM | 480*540*1980mm | 655x675x2045mm |
| Loading quantity | 88pcs/20GP, 176pcs/40GP, 264pcs/40HQ | 80PCS/20'GP,164 pcs/40GP | 48pcs/20'GP, 96pcs/40'GP | 27pPcs/20'GP, 54 pcs/40GP |
