Single Door Slim Upright Glass Door Display Freezer

  • LSD-118L

  • JIESHENG

  • -18 to -24 ℃

Availability:
Quantity:

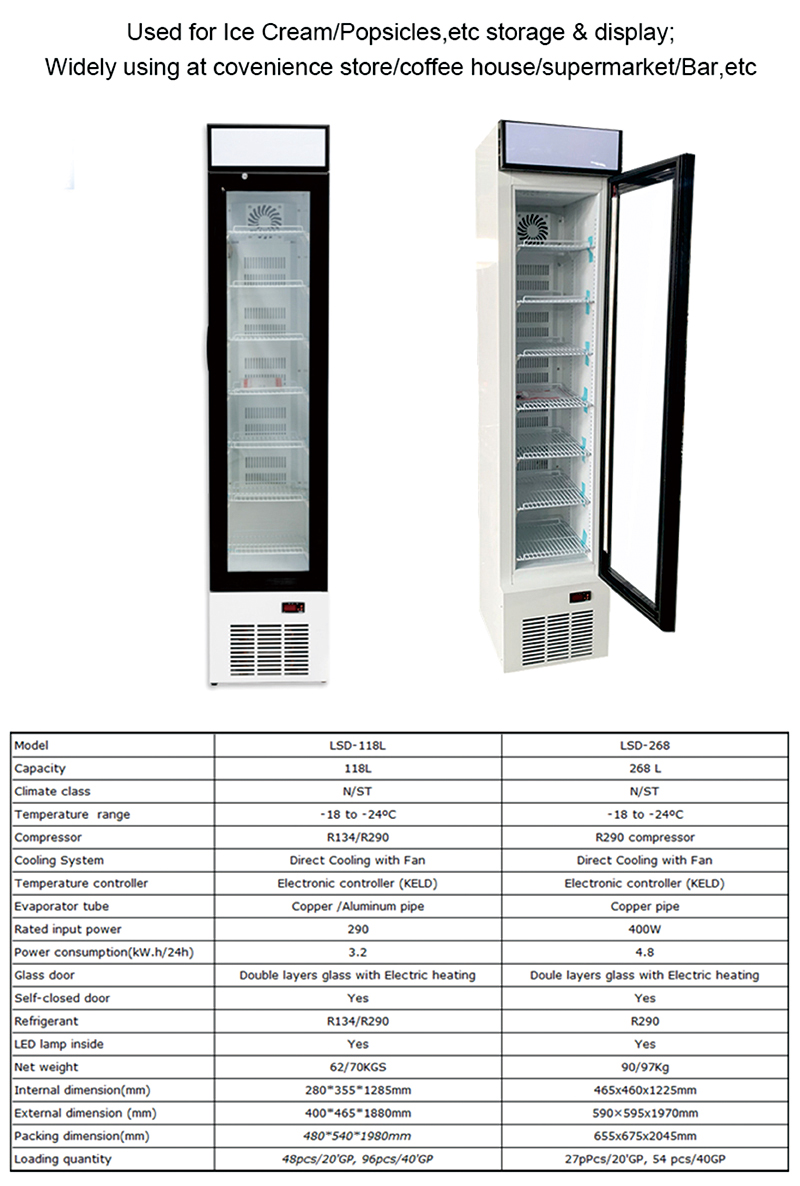

LSD-118L Single Door Slim Upright Glass Door Display Freezer


Technical Advantages:

1. Top mounted advertising box, illumination inside cabinet;

2. Electronic temperature controller with temperature display;

3. Anti-fog glass door with electric-heated glass;

4. High efficiency compressor, silent operation, more low energy consumption;

5. Door with lock and self-closed;

6. White powder coated liner and adjustable shelf;

7. LED lamp inside;

8. Both sides sticker logo optional.



Model
SD-50L
SD-88L
LSD-118L
LSD-268
Capacity
50L
88L
118L
268 L
Climate class
N/ST
N/ST
N/ST
N/ST
Temperature range
-18 to -24ºC
-18 to -24ºC
-18 to -24ºC
-18 to -24ºC
Power supply
220V/50Hz
220V/50Hz
220V/50Hz
220V/50Hz/60
or 110V/60Hz
or 110V/60Hz
or 110V/60Hz
or 110V/60Hz
Compressor
R134/R290
R134/R290
R134/R290
R290 compressor
Cooling System
Direct Cooling with Fan
Direct Cooling with Fan
Direct Cooling with Fan
Direct Cooling with Fan
Temperature controller
Electronic controller (KELD)
Electronic controller (KELD)
Electronic controller (KELD)
Electronic controller (KELD)
Evaporator tube
Copper /Aluminum pipe
Copper /Aluminum pipe
Copper /Aluminum pipe
Copper pipe
Rated input power
220W
260W
290
400W
Power consumption(kW.h/24h)
2.3
2.5
3.2
4.8
Glass door
Double layers glass with Electric heating
Double layers glass with Electric heating
Double layers glass with Electric heating
Doule layers glass with Electric heating
Self-closed door
Yes
Yes
Yes
Yes
Refrigerant
R134/R290
R134/R290
R134/R290
R290
LED lamp inside
Yes
Yes
Yes
Yes
Net weight
29/32KGS
45/50KGS
62/70KGS
90/97Kg
Internal dimension(mm)
330x335x475mm
298*413*695MM
280*355*1285mm
465x460x1225mm
External dimension (mm)
460x470x817mm (WxDxH)
435*543*1130MM
400*465*1880mm
590×595x1970mm
Packing dimension(mm)
542x539x866mm
500*640*1170MM
480*540*1980mm
655x675x2045mm
Loading quantity
88pcs/20GP, 176pcs/40GP, 264pcs/40HQ
80PCS/20'GP,164 pcs/40GP
48pcs/20'GP, 96pcs/40'GP
27pPcs/20'GP, 54 pcs/40GP
