Dw-45L80/60L80/86L80
JIESHENG
| Quantity: | |
|---|---|
Medical Storage Ultra Low Temperature Vertical Freezer (DW-45L80/60L80/86L80)
Technical Advantages:
1. Unique single-stage refrigeration technology & design, can achieve quick freezing;
2. With CFC free mixed refrigerants and foaming agent, high efficiency and energy saving;
Main Components:
1. Using Internationally renowed compressor, reliable and long working life;
2. Italian Dixell temperature controller, high accuracy and with Hi/Low temperature & Sensor fault alarm;
3. EBM Fan motor is reliable and long working life;

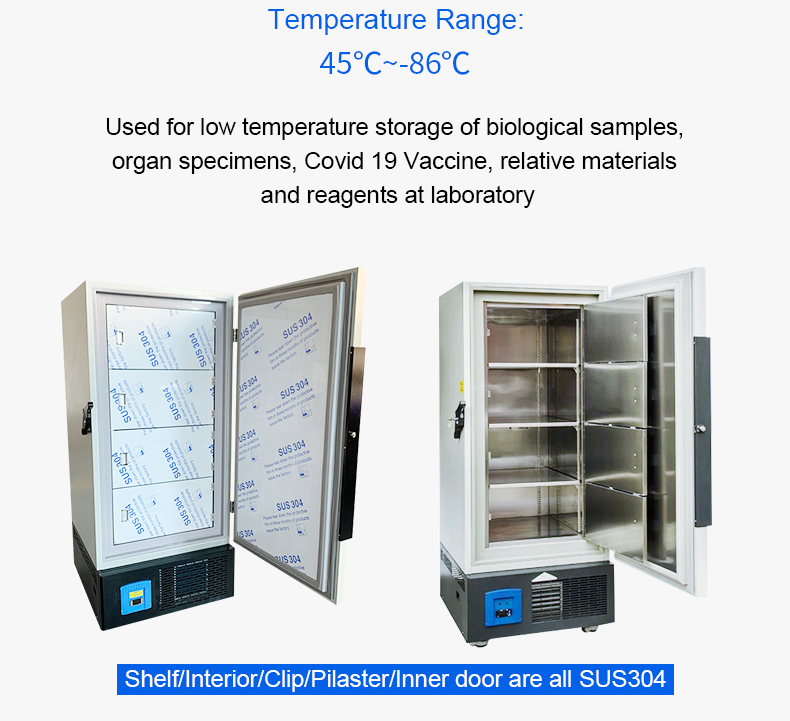

4. SUS 304 stainless steel l, durable and easy to clean;
5. 130mm Thicker insulation and double door gaskets design proving enough energy saving;
6. Full copper tube evaporator is durable and avoiding the inner leakage.

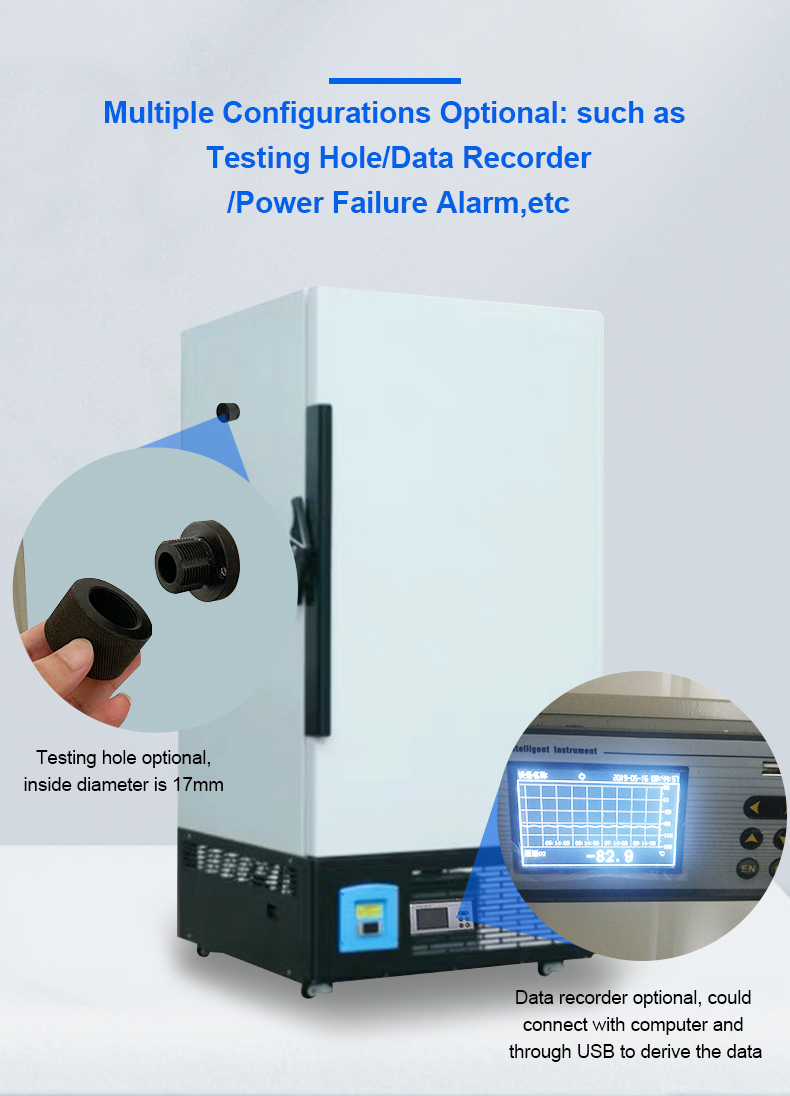

7.Temperature Recorder & Power failure Alarm are optional;
-45 Degree Ultra Low Temperature Freezer

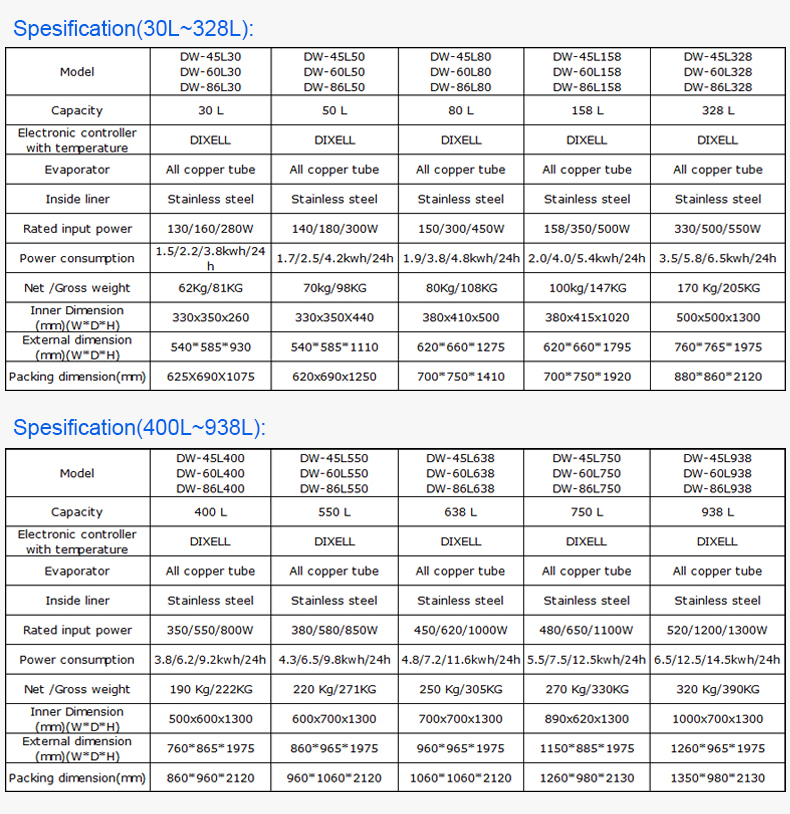

| Model | DW-45L30 | DW-45L50 | DW-45L80 | DW-45L158 | DW-45L328 |
| Capacity | 30 L | 50 L | 80 L | 158 L | 328 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 120mm | 120mm | 120mm | 120mm | 130mm |
| Temperature Range | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ | -25℃～-45℃ |
| Electronic controller with temperature display | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD | DIXELL/KELD |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | Optional | Optional |
| Rated input power | 130W | 140W | 150W | 158W | 330W |
| Power consumption | 1.5kwh/24h | 1.7kwh/24h | 1.9kwh/24h | 2.0kwh/24h | 3.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor | Single | Single | Single | Single | Single |
| Net /Gross weight | 65Kg/85KG | 75kg/100KG | 80Kg/110KG | 95kg/125KG | 165 Kg/200KG |
| Inner Dimension (mm)(W*D*H) | 330x350x260 | 330x350X440 | 380x410x500 | 380x415x1020 | 500x500x1300 |
| External dimension (mm)(W*D*H) | 540*585*930 | 540*585*1110 | 620*660*1275 | 620*660*1795 | 760*765*1975 |
| Packing dimension(mm) | 620X690X1060 | 620x690x1240 | 700*760*1400 | 700*760*1920 | 880*880*2100 |
-60 Degree Ultra Low Temperature Freezer | |||||
| Model | DW-60L30 | DW-60L50 | DW-60L80 | DW-60L158 | DW-60L328 |
| Capacity | 30 L | 50 L | 80 L | 158 L | 328 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 120mm | 120mm | 120mm | 120mm | 130mm |
| Temperature Range | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ | -25℃～-65℃ |
| Electronic controller with temperature display | DIXELL | DIXELL | DIXELL | DIXELL | DIXELL |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | Optional | Optional |
| Rated input power | 160W | 180W | 300W | 350W | 500W |
| Power consumption | 2.2kwh/24h | 2.5kwh/24h | 3.8kwh/24h | 4.0kwh/24h | 5.8kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor(Danfoss or Embraco) | Single | Single | Single | Single | Single |
| Net /Gross weight | 65Kg/85KG | 75kg/100KG | 80Kg/110KG | 95kg/125KG | 165 Kg/200KG |
| Inner Dimension (mm)(W*D*H) | 330x350x260 | 330x350X440 | 380x410x500 | 380x415x1020 | 500x500x1300 |
| External dimension (mm)(W*D*H) | 540*585*930 | 540*585*1110 | 620*660*1275 | 620*660*1795 | 760*765*1975 |
| Packing dimension(mm) | 620X690X1060 | 620x690x1240 | 700*760*1400 | 700*760*1920 | 880*880*2100 |
-86 Degree Ultra Low Temperature Freezer | |||||
| Model | DW-86L30 | DW-86L50 | DW-86L80 | DW-86L158 | DW-86L328 |
| Capacity | 30 L | 50 L | 80 L | 158 L | 328 L |
| Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Isolation thickness | 120mm | 120mm | 120mm | 120mm | 130mm |
| Temperature Range | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ | -40℃～-86℃ |
| Electronic controller with temperature display | DIXELL | DIXELL | DIXELL | DIXELL | DIXELL |
| Condenser | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling | Copper fin type/Fan cooling |
| Evaporator | All copper tube | All copper tube | All copper tube | All copper tube | All copper tube |
| Inside liner | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Inside door | Yes | Yes | Yes | Yes | Yes |
| Lock & Key | Optional | Optional | Optional | Optional | Optional |
| Rated input power | 280W | 300W | 450W | 500W | 550W |
| Power consumption | 3.8kwh/24h | 4.2kwh/24h | 4.8kwh/24h | 5.4kwh/24h | 6.5kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Compressor(Danfoss or Embraco) | Single | Single | Single | Single | Single |
| Net /Gross weight | 65Kg/85KG | 75kg/100KG | 80Kg/110KG | 95kg/125KG | 165 Kg/200KG |
| Inner Dimension (mm)(W*D*H) | 330x350x260 | 330x350X440 | 380x410x500 | 380x415x1020 | 500x500x1300 |
| External dimension (mm)(W*D*H) | 540*585*930 | 540*585*1110 | 620*660*1275 | 620*660*1795 | 760*765*1975 |
| Packing dimension(mm) | 620X690X1060 | 620x690x1240 | 700*760*1400 | 700*760*1920 | 880*880*2100 |
