DW-45W568/DW-60W568
JIESHENG
| Quantity: | |
|---|---|
Ultra-Low Temperature Vertical Freezer Medical Deep Freezer DW-45W568/60W568
Technical Advantages:
1. Unique single-stage refrigeration technology & design.
2. With CFC free mixed refrigerants and foaming agent, high efficiency and energy saving;

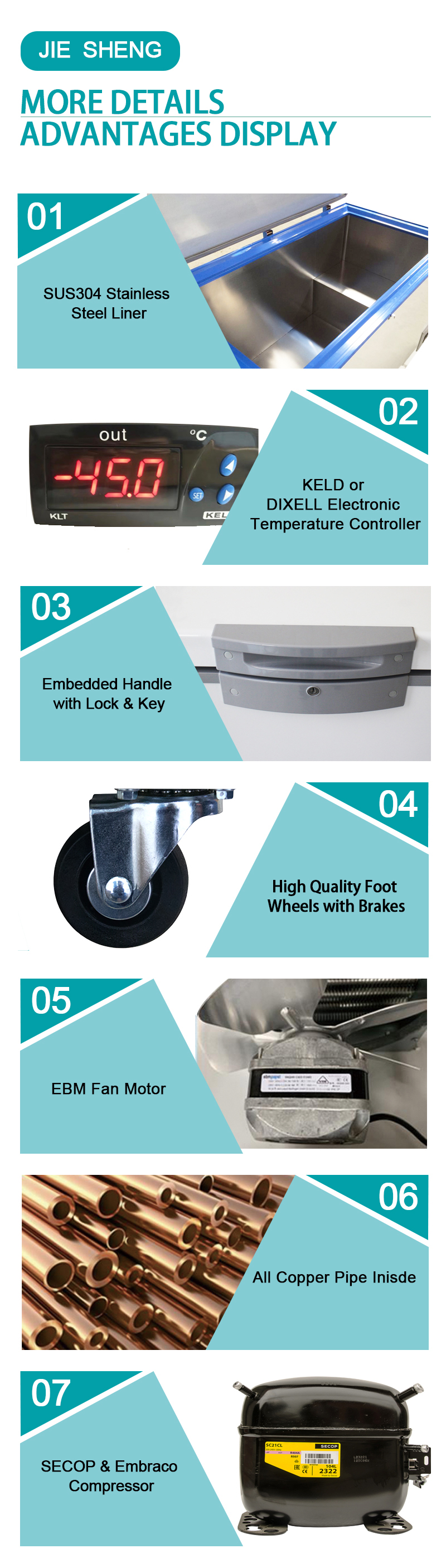

Main Components:
1. Citing international famous brand compressor, strong cooling, reliable and long working life;
2. Italian Dixell temperature controller, high accuracy and with Hi/Low temperature & Sensor fault alarm;
3. EBM Fan motor is reliable and long working life;
4. SUS 304 stainless steel liner, durable and easy to clean;
5. Thicker insulation (100mm) and double door gaskets design proving enough energy saving;
6. Full copper tube evaporator is durable and avoiding the inner leakage.
-45 Degree Ultra Low Temperature Freezer

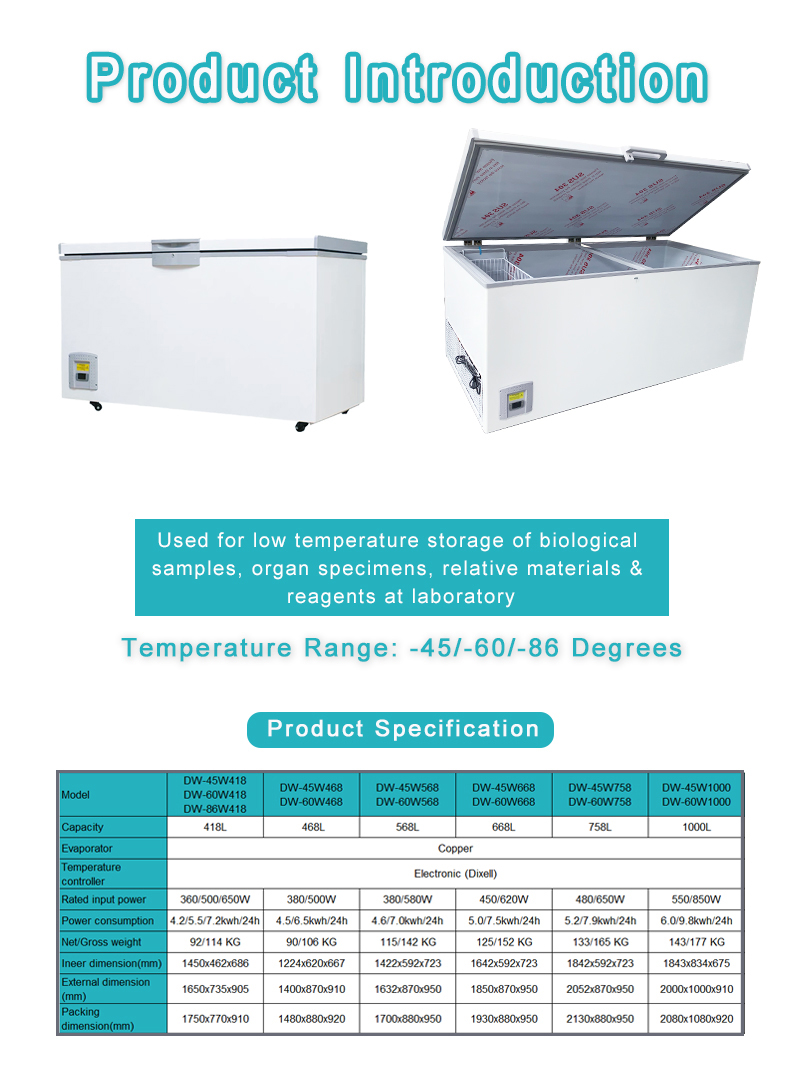

| Model | DW-45W418 | DW-45W468 | DW-45W568 | DW-45W668 | DW-45W758 |
| Capacity | 418L | 468L | 568L | 668L | 758L |
| Type | Chest | Chest | Chest | Chest | Chest |
| Door type | Top open foamed door | Top open foamed door | Top open foamed door | Top solid foamed door | Top solid foamed door |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Climate class | N/ST | N/ST | N/ST | N/ST | N/ST |
| Temperature Range | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) | -25℃～-45℃(adjustable) |
| Isolation thickness | 100mm | 100mm | 100mm | 100mm | 100mm |
| Evaporator | Copper | Copper | Copper | Copper | Copper |
| Temperature controller | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) |
| Alert type | Optional | Optional | Optional | Optional | Optional |
| Condenser | Fan cooling | Fan cooling | Fan cooling | Fan cooling | Fan cooling |
| Inside bottom type | Step bottom | Step bottom | Step bottom | Step bottom | Step bottom |
| Rated input power | 360W | 380W | 380W | 450W | 480W |
| Power consumption | 4.20kwh/24h | 4.50kwh/24h | 4.60kwh/24h | 5.0kwh/24h | 5.20kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Net weight | 100KGS | 110KGS | 120KGS | 135KG | 150KG |
| Ineer dimension(mm) | 1450x462x686 | 1224x620x667 | 1422x592x723 | 1642x592x723 | 1842x592x723 |
| External dimension (mm) | 1650x735x905 | 1400x870x910 | 1632x870x950 | 1850x870x950 | 2052x870x950 |
| Packing dimension(mm) | 2300x810x950 | 1460x880x950 | 2239x930x1000 | 1930x880x1000 | 2140x950x1000 |
-60 Degree Ultra Low Temperature Freezer | |||||
| Model | DW-60W418 | DW-60W468 | DW-60W568 | DW-60W668 | DW-60W758 |
| Capacity | 418L | 468L | 568L | 668L | 758L |
| Type | Chest | Chest | Chest | Chest | Chest |
| Door type | Top open foamed door | Top open foamed door | Top open foamed door | Top solid foamed door | Top solid foamed door |
| Power supply | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz | 220V/50Hz, 110V/60Hz |
| Climate class | N/ST | N/ST | N/ST | N/ST | N/ST |
| Temperature Range | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) | -25℃～-65℃(adjustable) |
| Isolation thickness | 100mm | 100mm | 100mm | 100mm | 100mm |
| Evaporator | Copper | Copper | Copper | Copper | Copper |
| Temperature controller | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) | Electronic (Dixell) |
| Alert type | Optional | Optional | Optional | Optional | Optional |
| Condenser | Fan cooling | Fan cooling | Fan cooling | Fan cooling | Fan cooling |
| Inside bottom type | Step bottom | Step bottom | Step bottom | Step bottom | Step bottom |
| Rated input power | 500W | 500W | 580W | 620W | 650W |
| Power consumption | 5.50kwh/24h | 6.50kwh/24h | 7.00kwh/24h | 7.50kwh/24h | 7.90kwh/24h |
| Refrigerant | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) | CFC Free(Mixed Gas) |
| Net weight | 100KGS | 110KGS | 120KGS | 135KG | 150KG |
| Ineer dimension(mm) | 1450x462x686 | 1224x620x667 | 1422x592x723 | 1642x592x723 | 1842x592x723 |
| External dimension (mm) | 1650x735x905 | 1400x870x910 | 1632x870x950 | 1850x870x950 | 2052x870x950 |
| Packing dimension(mm) | 2300x810x950 | 1460x880x950 | 2239x930x1000 | 1930x880x1000 | 2140x950x1000 |
