BD/BC-388
JIESHENG
-18 to -22 Celsius
| Quantity: | |
|---|---|
Commercial Top Open Foamed Door Chest Freezer
Application:
Used for storage and display of beef, steak, pizza, seafood, meat products, frozen foods, ice cream, popsicles, etc., widely used in chain supermarkets, chain convenience stores, fresh food stores, ice cream shops, etc, also could be used at home.
Technical Advantages:

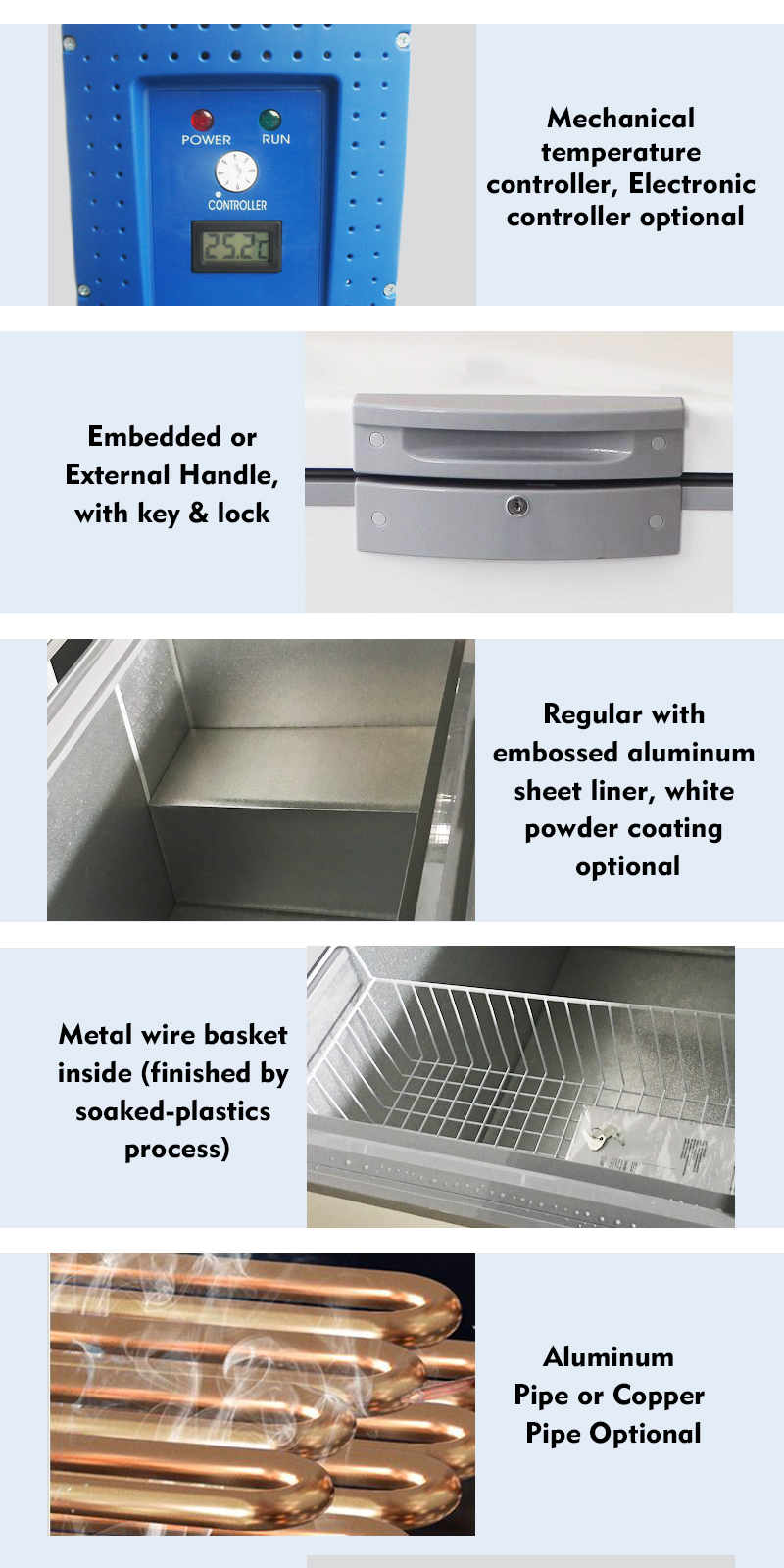

1. Embossed aluminum board liner;
2. A food basket is provided together with the machine;
3. Thick thermal insulation 70mm using advanced foaming technology;
4. Widely temperature variation design for cold storage, micro-freezing, freezing and speed freezing;
5. R600a or R290 high efficiency compressor, CFC-free;
6. The door handle with lock.

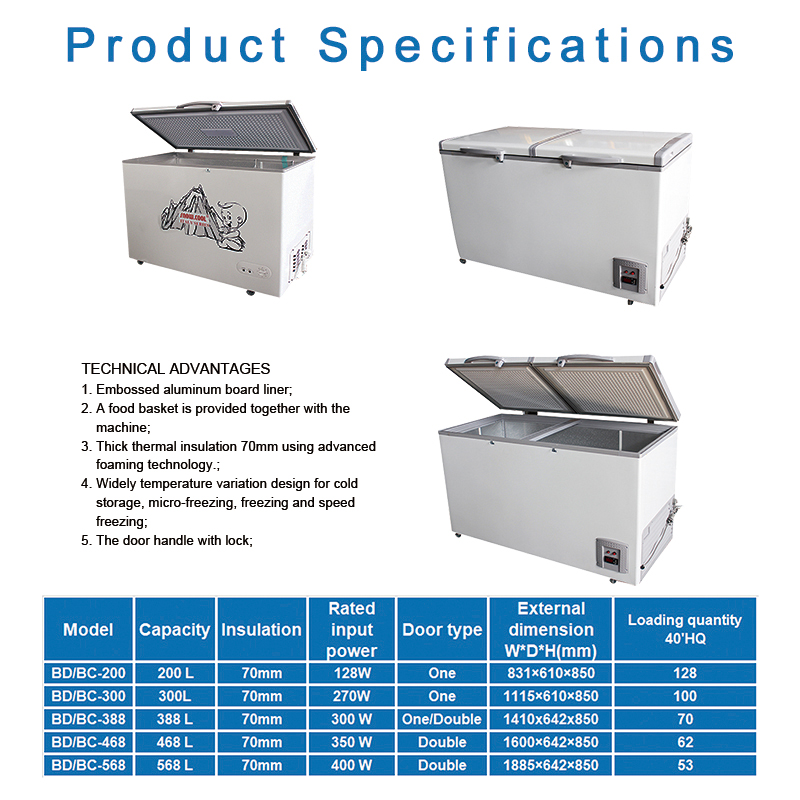

Specification:
Model | BD/BC-200 | BD/BC-300 | BD/BC-388 | BD/BC-468 | BD/BC-568 |
Capacity | 200 L | 300L | 388 L | 468 L | 568 L |
Climate class | N/T | N/T | N/T | N/T | N/T |
Temperature | -18oC to 10oC | -18oC to 10oC | -18oC to 10oC | -18oC to 10oC | -18oC to 10oC |
Inside bottom type | Step bottom | Step bottom | Step bottom | Step bottom | Step bottom |
Power supply | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz | 220V/50Hz |
Rated input power | 128W | 270W | 270 W | 300 W | 300 W |
Power consumption | 1.20 kwh/24h | 1.23kwh/24h | 2.20 kwh/24h | 2.50 kwh/24h | 2.50 kwh/24h |
Refrigerant | R600a/134a | R134a | R134a | R134a | R134a |
Interior lamp | Optional | Optional | Optional | None | None |
Condenser type | Inside or outside | Inside or outside | Inside or outside | Inside or outside | Inside |
Door type | one | one | One/Double | Double | Double |
Inside sliding glass door | Optional | Optional | None | None | None |
Net /Gross weight | 40/44 Kg | 50/55 Kg | 67/72 Kg | 72/78 Kg | 79/85 Kg |
External dimension (mm) | 831×610×850 | 1115×610×850 | 1410x642x850 | 1600×642×850 | 1885×642×850 |
Packing dimension (mm) | 887x692x890 | 1160x692x890 | 1490x760x890 | 1690x760x890 | 1975x750x890 |
Loading quantity | 128pcs/40'HQ | 100pcs/40'HQ | 70pcs/40'HQ | 62pcs/40'HQ | 53pcs/40'HQ |
